Direct forming tube mill

Retail price
0.0
Market price
0.0
Number of views:
1010
Product serial number
Quantity
-
+
Stock:
Product description
Parameters

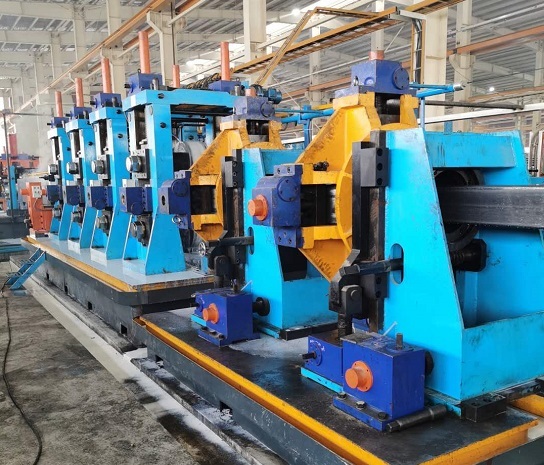

Direct forming tube mill



Model Number

200X200mm

Place of Origin

Hebei, China (Mainland)

Molding speed

20-30m/min

Pipe diameter

80X80mm-200X200mm

Pipe Thickness

5-16mm

Voltage

380V

Power

2000KW

Certification

ISO9001,CE,BV

Pipe shape

Rectangle,square

Material of Pipe

Carbon Steel , Stainless Steel and Galvanized Steel



High Direct forming tube mill seam welded pipe production line is the specifications of the steel belt feeding unit, through the roll bring curled up into a tube billet steel, and then use the high frequency of proximity effect and skin effect make the strip edge instantaneous heating to welding temperature, and under the action of squeezing roller complete welding, then through water cooling, sizing and straightening as required specifications of the steel pipe. The product line in each units on the basis of digesting and absorbing domestic and foreign similar equipment, combined with China's national conditions, innovative design, convenient operation and maintenance, simple. The machine has high machining quality and assembly precision, and can produce electric welded steel pipe with high precision by adopting reasonable roll pass.



Direct forming tube mill Production Process
Scroll up → Uncoil → Flattening → End Shear & Butt Welding → Accumulator → Forming → High-frequency induction welding→ Removing external burr → Cooling → Sizing → Cutting → Checking & Collecting → Accessing Warehouse

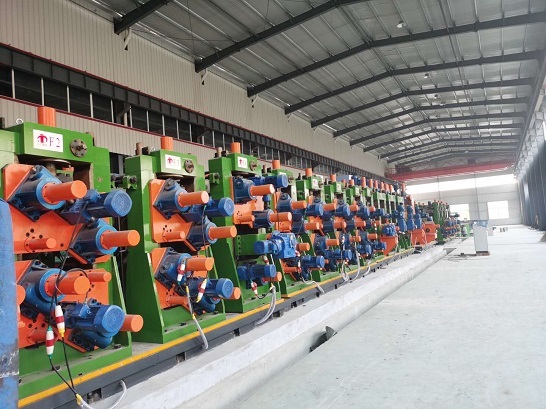

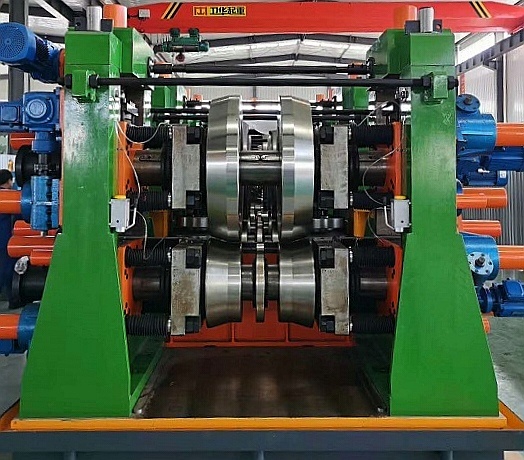

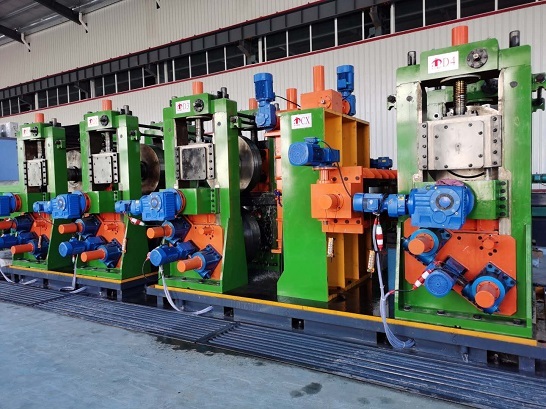

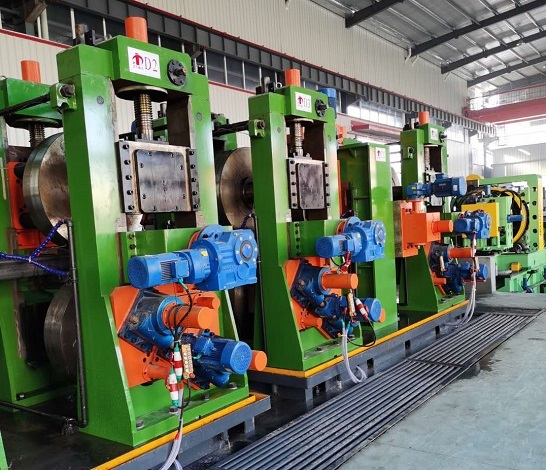

Direct forming tube mill



Direct forming tube mill ERW Tube Mill Other Model



Model

Diameter Range

Pipe Thickness

Molding speed(m/min)

Motor Power(KW)

Mechanical area
(m³)

HG20

8-20MM

0.3-1MM

30-120

55

7×50

HG32

12-32MM

0.3-2.0MM

30-120

75

7×50

HG50

16-50MM

0.8-2.5MM

30-110

110

7×60

HG60

20-60MM

0.8-3MM

30-100

132

7×65

HG76

12-76MM

1-3MM

30-100

320

8×80

HG89

32-89MM

1-4MM

30-80

350

8×80

HG114

45-114MM

1.5-5.0MM

30-60

400

10×100

HG165

60-165MM

3-7MM

30-50

600

10×110

HG219

114-219MM

4-8MM

20-40

800

12×150

HG273

114-273MM

4-10MM

15-30

1000

18×160

HG325

165-325MM

4-12MM

10-30

1200

18×180

HG426

165-426MM

4-16MM

8-25

1400

18×180

HG508

219-508MM

4-20MM

8-20

2000

21×180


Our Direct forming tube mill Services

1.) We will send the engineer for  the installation and training your workers how to operate this machine in correct way.
2.)  Warranty Team
One year quality guarantee, life guarantee repair.  Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.
3.)  We supply the pre-sell and after-sell service.
pre-sell service: workshop design, and production output design
after-sell service: installation and training, and the skilled engineer for working.
4.)  We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.
5.)  We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.
6.) We will be responsible for the loading and shipping .

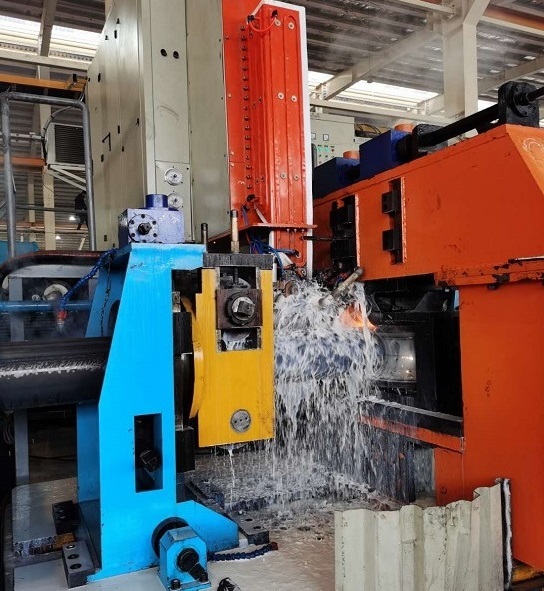

Direct forming tube mill factory
